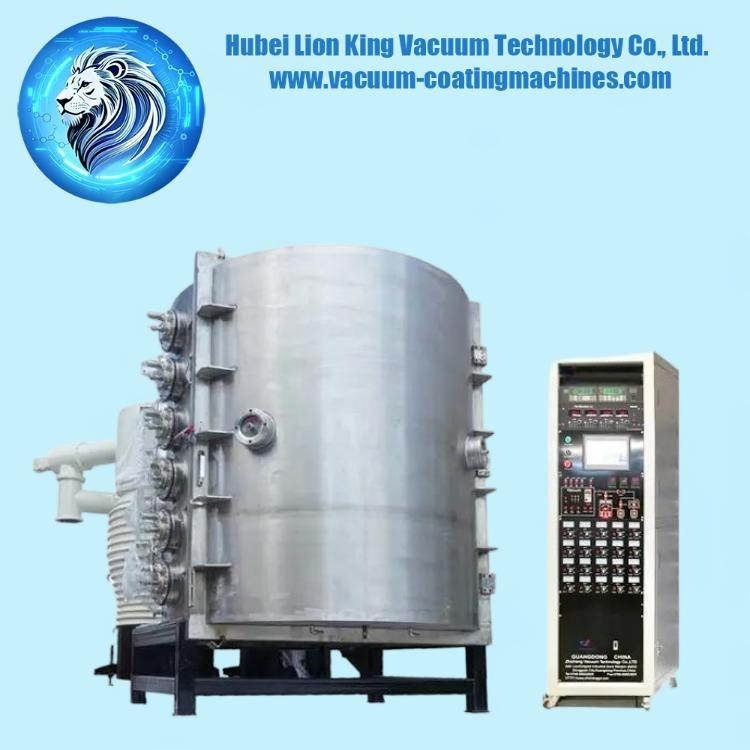

Deposition Magnetron Sputtering Vacuum Coating Machine/Multi-Arc Ion Sputtering Vacuum Chamber
|
Deposition Magnetron Sputtering Vacuum Coating Machine/Multi-Arc Ion Sputtering Vacuum Chamber
| Place of Origin | Guangdong |
| Brand Name | Lion King |
| Certification | CE |
Product Details
Chamber Size:
Customized
Coating Control System:
PLC/Touch Screen
Operation Way:
Touch Screen
Coating Monitoring System:
Real-time
Coating Thickness:
0.1-5 Microns
Coating Power Supply:
DC/RF/AC
Coating Hardness:
≥Hv800
Coating Materials:
Metal, Ceramic, Organic Materials
Chamber Material:
Stainless Steel
Vacuum Level:
High Vacuum
Warranty:
1 Year
Coating Speed:
Fast
Highlight:
magnetron sputtering vacuum coating machine
,multi-arc ion sputtering vacuum chamber
,deposition magnetron sputtering machine
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
45-60 work days
Product Description
1. Core Working Principle
- Establishment of Vacuum Environment: A vacuum pump set is used to reduce the pressure inside the coating chamber to a high vacuum state (usually ≤10⁻³Pa), preventing air molecules from interfering with film deposition.
- Plasma Excitation: An inert gas (such as argon) is introduced into the chamber, and a high-voltage electric field is applied between the target (coating material, e.g., aluminum, titanium, ITO) and the substrate to ionize the argon gas and generate plasma.
- Magnetron Sputtering Deposition: A magnetic field is used to constrain the electron movement trajectory, enhancing the collision efficiency between electrons and argon molecules. This causes argon ions to bombard the target surface at high speed; the target atoms are "sputtered out", move in a straight line, and deposit on the substrate surface to form a uniform film.
2. Core Advantages
- High Film Quality: The film has good uniformity (deviation can be controlled within ±5%) and strong adhesion to the substrate, making it less likely to peel off or crack.
- High Coating Efficiency: The design of using a magnetic field to constrain electrons significantly improves the sputtering rate. The single-target deposition rate can reach 0.1-10μm/min, suitable for mass production.
- Wide Material Adaptability: The applicable coating materials include metals (aluminum, copper, silver), alloys (stainless steel, titanium alloy), and compounds (ITO, SiO₂, Al₂O₃), meeting different functional requirements.
- Environmental Friendliness and No Pollution: The entire process has no discharge of chemical waste liquid or harmful gases, and only uses inert gases and solid targets, complying with modern industrial environmental protection standards.
3. Main Application Fields
| Application Industry | Examples of Specific Uses | Core Requirements |
|---|---|---|
| Electronic Information Industry | Chip electrode coating, display ITO conductive film, magnetic head film | High conductivity, film uniformity, precise control |
| Optical Field | Anti-reflection film for eyeglasses, filter film for camera lenses, laser lenses | Low reflectivity, high light transmittance, wear resistance |
| Decorative and Functional Coating | Decorative films for hardware (e.g., titanium gold, zirconium gold), wear-resistant films for cutting tools | Aesthetics, corrosion resistance, high hardness |
| New Energy Industry | Lithium battery pole piece coating, anti-reflection film for photovoltaic glass | High adhesion, mass production efficiency, low cost |
4. Key Technical Parameters (Reference)
- Vacuum Degree: Ultimate vacuum ≤5*10⁻⁵Pa, working vacuum 1*10⁻³ - 5*10⁻¹Pa
- Target Configuration: Single-target, double-target, or multi-target (supporting DC, RF, and mid-frequency sputtering), target size Φ50-300mm
- Substrate Size: Customizable; conventional sizes cover sheet materials (100*100mm - 1000*1000mm) and coiled materials (width ≤1600mm)
- Deposition Rate: 0.5-10μm/min for metal films, 0.1-2μm/min for oxide films
- Substrate Heating Temperature: Room temperature - 500℃ (precise temperature control available, temperature difference ±2℃)
