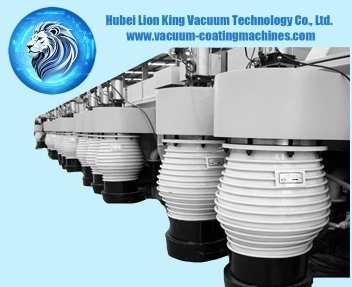

Metal Substrate Continuous Magnetron Sputtering Coating Assembly Line

FEATURE DESCRIPTION:
This magnetron sputtering coatingassembly line can apply to coating glass curtain wall,aluminum mirror ,reflection mirror, equipped with rotation cathode, flat cathode magnetron sputtering target.It can also coat multilayer special films such as metal or metal oxid, metal nitride film, metal elementary substance film,complex film ,low-eradiation film ,and small lesser curvature arc-shaped glass .The output of the coating line is high,more than200 million squares meters can coat per year ,multicellular transmission , fully guaranty the film homogeneity,physical property.

TECHNICAL CONFIGURATION:
Chamber structure: adopt high efficiency horizontal continuous magnetron coating assembly line ,front and back roughing pumping chamber, transition chamber ,refining pumping chamber, buffer chamber, color plating chamber.
Target design : adopt new design rotation cathode target and flat cathode target.

Power configuration :equipped with high power medium frequency magnetron sputtering power.

Electrical control :production line use PLC control,equipped with industrial computer display system.

Human machine conversation: control system can achieve conversation between human and machine. There are alarm remind and malfunction display ,reminding operator undertake the problem correctly.

Transmission system : roller transmitting ,support frequency converseGlass and flat board are available for coating, size can be customizedOur production line adopt advanced slide damper to separate the chamber, which can achieve efficiencyseparation, stabilize the gas of process.
The production line adopt well distributed input pipe structure design , gas flow transfusing more uniformand gentle .

APPLICATION:
It mainly apply to flat glass, acrylicboard and coating single -layer film on metal material, alloy film or metal compound film.It can achieve large area glass coating, reflector glass coating and sputtering coating requirement.
