Customizable Length Automatic UV Spraying Line with Adjustable Painting Thickness and PLC Control

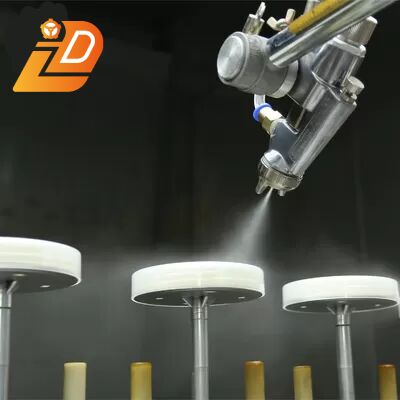

Customized Automatic UV Coating Spraying Gun Fixed Production Line Advanced Coating System for Motor Engine Core Components with Curing Drying Oven Key Advantages Environmentally Friendly – Saves 25% to 50% paint compared to traditional manual spraying Higher Work Efficiency – Increased production capacity within the same timeframe Superior Spray Quality – Enhanced coating and coating results compared to manual methods Fully Automated Operation – 10-second setup for plane coating with simplified controls Worker Health Protection – Dust and paint emission-free spraying booth environment Production Workflow Process Loading Area → Brush Dust Removal → Spray Gun Dust Removal → Automatic Pressing Device → Brush Dust Removal → Electrostatic Dust Removal 1 → Flame Treatment → Electrostatic Dust Removal 2 → PP Water → Primer Spraying 1 → Primer Spraying 2 (Optional) → Primer Leveling → IR Preheating → UV Curing → Transfer to PVD Machine → PVD Aluminum Film Coating → Return to UV Line → Electrostatic Dust Removal 3 → Midcoat Spraying (Optional) → Topcoat Spraying → IR Preheating → UV Curing → Unloading → Quality Inspection → Packaging System Features Advanced complete coating system with comprehensive capabilities Wide application for UV coating on plastic, metal, glass, ceramic, and other substrates Complete assembly line system including flame treatment, electrostatic dust removal, UV automatic coating, infrared preheating leveling, UV curing, and cooling air chambers Automatic coating technology with integrated automatic spray guns Significant reduction in paint mist pollution dispersion Flexible auto chain type design for customizable line body planning and installation Modern human-machine interface with PLC automatic control system for simple operation Optimized infrared heating arrangement with precise UV curing layout Technical Configuration Component Specification Length Configuration Customized length options for single/double coating with single/double baking Rotor Chain Frequency adjustable transmission chain system Electrostatic Dust Precipitation Independent automatic chamber with 6 electrostatic precipitation guns Flame Treatment Multiple flame treatment guns for enhanced adhesion Automatic Coating Independent automatic spray chamber Infrared Leveling Infrared pre-heat-flux bake with accurate temperature calculation and adjustment UV Curing Multiple high-power UV lights with comprehensive curing device Air Purge System High-efficiency filtration technology Electrical Control PLC fully automatic control system Application Scope This equipment is widely applied to coating processes for plastic, metal, and glass products. The system features double spray and double bake capabilities, enabling both UV coating and general thermal curing coating applications. Common Applications Include: Automotive lighting components Bowl covers and container lids High-end cosmetic caps and packaging Arts and crafts manufacturing Footwear heels and components
