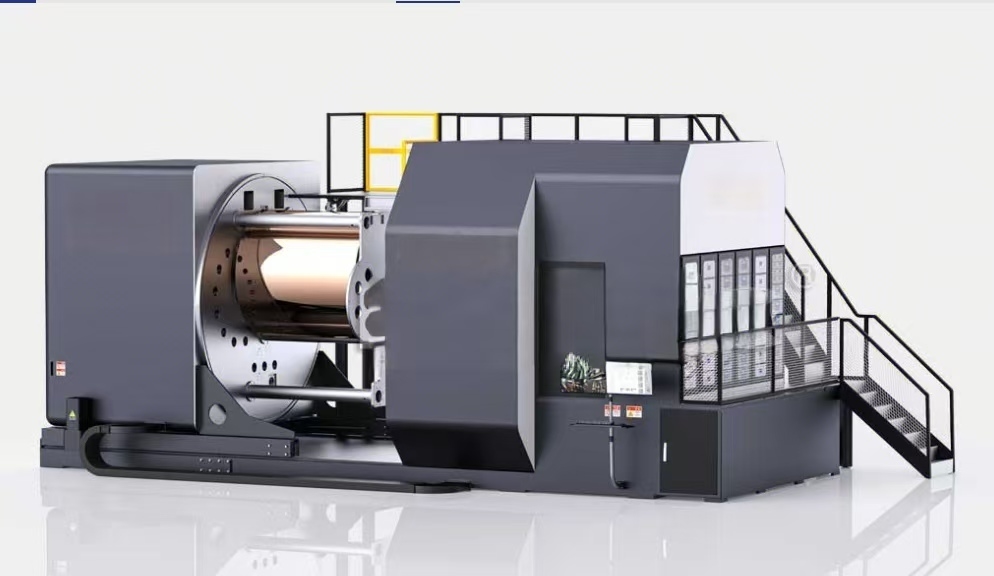

Compound Copper Foil Roll To Roll Coating Equipment 380v For Thin Film

Place of Origin	Guangdong
Brand Name	Lion King
Certification	CE

Product Details

Coating Uniformity:

±1%

Coating Thickness:

0.1-1mm

Coating Monitoring System:

Real-time

Coating Pressure:

Vacuum

Coating Method:

Roll To Roll

Coating Temperature:

Adjustable

Coating Speed:

Up To 100m/min

Coating Control System:

PLC

Coating Type:

Vacuum

Coating Size:

Customizable

Application:

Coating

Coating Environment:

Controlled

Voltage:

380v Three Phase 50-60HZ

Dimension:

25000mm*2500mm*1500mm

Drying Method:

Hot Air, Infrared, UV

Model:

JZ-1800#

Substrate Material:

Film, Paper, Fabric

Power Supply:

AC 380V, 50Hz

Power:

18KW*3

Coating Material:

Liquid, Paste, Powder

Working Speed:

15-20m/min

Number Of Machines:

Colour Mode:

White And Yellow

Condition:

New

Painting Speed:

15-25m/min

Unwinding Method:

Single Station, Double Station

Working Width:

1800mm

Heating Method:

Electric, Gas, Steam

Rewinding Method:

Single Station, Double Station

Warranty:

1 Year

After-Sales Service:

Engineers Available To Service Machinery Overseas

Highlight:

Roll To Roll Coating Equipment 380v

Copper Foil Roll To Roll Coating Equipment

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

Product Description

It realizes one-time double-sided copper film plating on the surface of PET/PP plastic films with a thickness of 3.0-4.5μm and a width of 600-1650mm, forming a "PVD copper - polymer support layer - PVD copper" sandwich structure. The equipment process speed is 0.5-30m/min.

Ultra-thin composite copper foil is a new type of negative electrode material for lithium battery current collectors. Compared with traditional electrolytic copper foil, composite copper foil has the advantages of low cost, high safety and high energy density. Lithium batteries are developing towards higher energy density and higher safety, while lithium battery copper foils are developing towards thinner, microporous, higher tensile strength and higher elongation.

Ultra-thin composite copper foil is a new type of lithium battery copper foil material made of the "PVD copper - polymer support layer - PVD copper" sandwich structure. A 20-70nm copper film is plated on both sides of substrates such as PET/PP with a thickness of 3-4.5µm by means of magnetron sputtering, with a sheet resistance of about 0.5-2Ω, so as to realize the metallization of the film surface. Then, the copper film is thickened to 1µm by chemical electroplating. The 6-8μm composite copper foil can replace the 4.5-9μm electrolytic copper foil.
