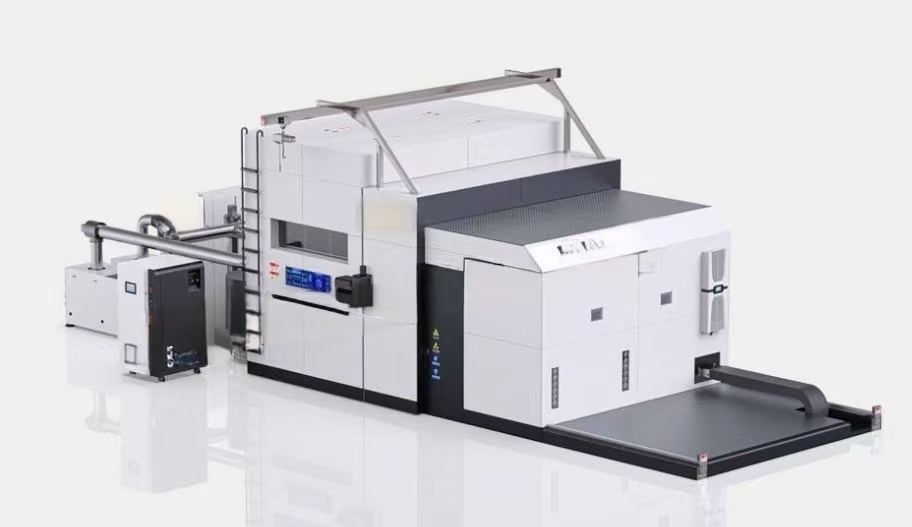

High Precision Roll To Roll Coating Machine Composite Aluminum Foil Web Coating Machine

Place of Origin	Guangdong
Brand Name	Lion King
Certification	CE

Product Details

Coating Uniformity:

±1%

Coating Thickness:

0.1-1mm

Coating Monitoring System:

Real-time

Coating Pressure:

Vacuum

Coating Method:

Roll To Roll

Coating Temperature:

Adjustable

Coating Speed:

Up To 100m/min

Coating Control System:

PLC

Coating Type:

Vacuum

Coating Size:

Customizable

Application:

Coating

Coating Environment:

Controlled

Voltage:

380v Three Phase 50-60HZ

Dimension:

25000mm*2500mm*1500mm

Drying Method:

Hot Air, Infrared, UV

Model:

JZ-1800#

Substrate Material:

Film, Paper, Fabric

Power Supply:

AC 380V, 50Hz

Power:

18KW*3

Coating Material:

Liquid, Paste, Powder

Working Speed:

15-20m/min

Number Of Machines:

Colour Mode:

White And Yellow

Condition:

New

Painting Speed:

15-25m/min

Unwinding Method:

Single Station, Double Station

Working Width:

1800mm

Heating Method:

Electric, Gas, Steam

Rewinding Method:

Single Station, Double Station

Warranty:

1 Year

After-Sales Service:

Engineers Available To Service Machinery Overseas

Highlight:

Aluminum Foil Web Coating Machine

High Precision Roll To Roll Coating Machine

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

Product Description

Equipment in this series adopts evaporation technology to deposit a 1μm aluminum film on both sides of 4.5-8.0μm substrates such as PET/PP, achieving film surface metallization and forming a "PVD aluminum - polymer support layer - PVD aluminum" sandwich structure. It overcomes the difficulty of large-scale and rapid evaporation deposition of thick aluminum films.

Compared with the traditional aluminum foil rolling process, the preparation process of composite aluminum foil is more challenging. With PVD evaporation as the core process, it melts metal materials at high temperature and deposits aluminum films on both sides of PET/PP plastic films, endowing both sides with conductivity. Composite aluminum foil does not require wet processes such as chemical electroplating, and double-sided aluminum films can be completed in one go only through dry processes.
