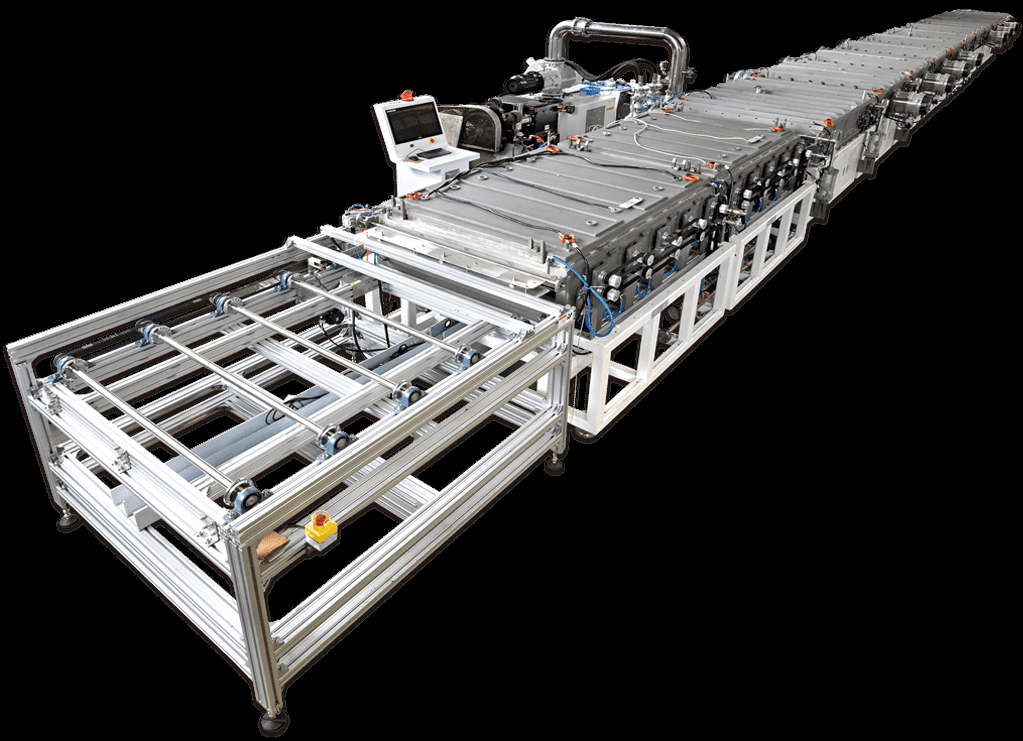

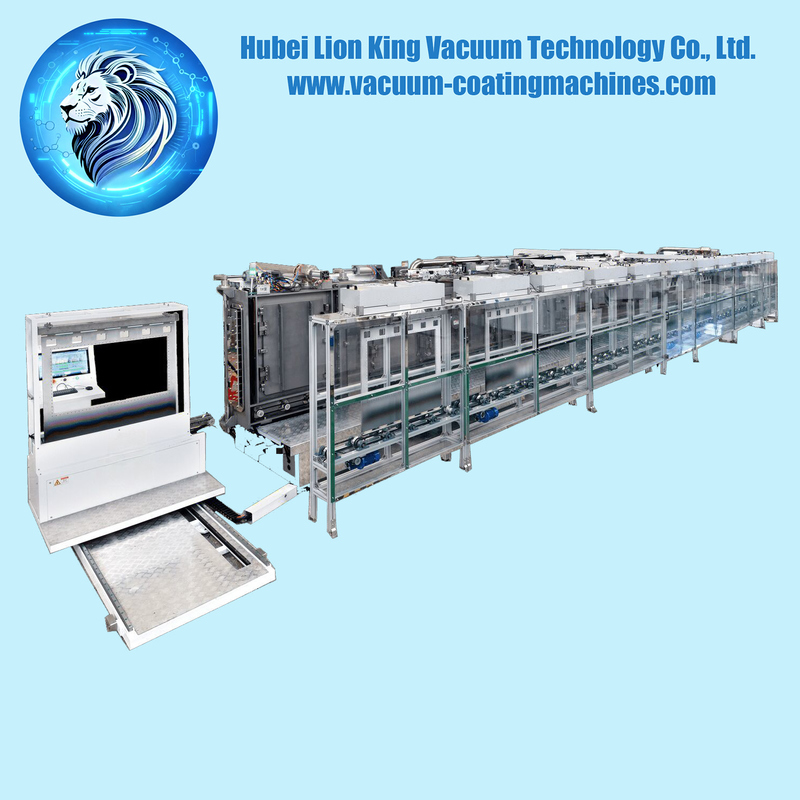

SUS304 Body Automated Continuous Vacuum Coating Line For Electronics And Plate Glass

This series of coating lines are mainly used for plate glass, acrylic, PC, PET substrates, various metal films, dielectric films, dielectric metal composite films, transparent conductive films, CF films, etc. The company can provide design, complete set of machine, process and "turnkey" engineering service.

The material of vacuum chamber body is SUS304. The wall of vacuum chamber is polished, and the outer wall is treated with spray bead after polishing. The vacuum chamber is separated by independent gate valve - plug valve, which can realize effective isolation and stabilize process gas. At present, our company adopts the gate valve design, which has better sealing effect and more durable than the current domestic general flap valve. The transmission adopts magnetic guidance to ensure the stability of transmission. The speed of each section of the whole production line is driven by frequency conversion motor, and the running speed is adjustable; electrical control system: touch screen and PLC automatic control, man-machine dialogue to achieve the system data display, operation and control.

The machine is mainly used for the surface coating of plastic panel and display screen in mobile phone, electronics, household appliances and other industries.
