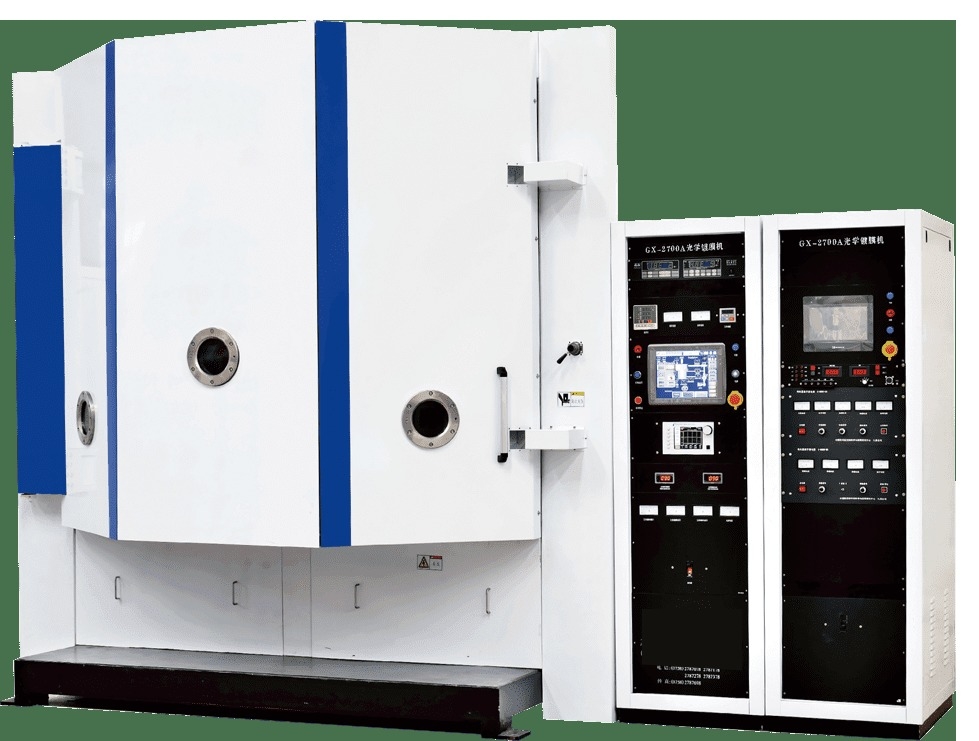

Quality Full Auto 380V Vacuum Coating Machine For Stainless Steel Sheet And Pipe factory

Full Auto 380V Vacuum Coating Machine For Stainless Steel Sheet And Pipe

Place of Origin:Zhaoqing, Guangdong

Brand Name:Zhongda

Certification:CE

Minimum Order Quantity:1

Delivery Time:20

Tags:

optical electron beam coating equipment

PLC Optical Electron Beam Coating Machine

Optical Electron Beam Coating System

Product Details

Highlight:

Vacuum Coating Machine For Steel Sheet

Vacuum Coating Machine For Steel Pipe

Coating Warranty: 1 Year

Substrate Material: Glass, Metal, Ceramic

Coating Type: Optical

Coating Deposition Rate: 1-5 Å/s

Coating Hardness: ≥800HV

Coating Chamber Size: Customizable

Coating Power Supply: High Voltage Power Supply

Coating Adhesion: ≥100N

Coating Uniformity: ±5%

Coating Material: Electron Gun

Coating Control System: PLC Touch Screen

Coating Thickness: 0.1-10 Microns

Coating Method: Electron Beam Evaporation

Coating Temperature: ≤200℃

Coating Transparency: ≥95%

Coating Application: Optical Lenses, Mirrors, Filters

Coating Features: High Efficiency, Low Cost, Easy Operation

Coating Substrate: Glass, Metal, Ceramic, Etc.

Warranty: 1 Year

Vacuum Chamber Size: Customizable

Power Supply: AC 220V, 50/60Hz

Application: Electron Gun Coating

Coating Size: Customizable

Type: Coating Machine

Control System: PLC + Touch Screen

Coating Material: Electron Beam

Application: Electron Beam Coating

Product Description

Detailed Specifications & Features

warranty

1 Year

machine type

Spray Booths, Painting Equipment, Pre-treatment Equipment, Conveying Equipment, Drying Oven, Curing oven, Coating Equipment

type

Coating Production Line

voltage

380V or Customizable

coating

Vacuum Coating

core components

PLC, Pressure vessel, Gear, Pump, vacuum machine chamber

video outgoing-inspection

Provided

machinery test report

Provided

key selling points

Free training/easy to operate

substrate

Stainless steel

power(w)

150KW-500KW or Customizable

weight (kg)

50000

place of origin

Guangdong, China

brand name

Lion King

dimension(l*w*h)

L4500mm*W5000mm*H3000mm or customizable

After-sales Service Provided

Engineers available to service machinery overseas

Chamber material

STAINLESS STEEL

Coating application/coating substrate

metal , glass and plastic products

Raw coating material

Titanium , chrome, Aluminum, Brass, Zirconium,etc.

ultimate vacuum

5*10-4 pa

Coating color

Golden, rose golden, black, dark black,champagne, Brown,etc.

Coating technology

Multi arc ion pvd coating technology

Installation and training

Free oversea installing and training service

Control mode

PLC+HMITouch screen+Full automatic +Alarm system , Full Automatic

Vacuum system

Diffussion pump+roots pump+rotary vacuum pump

Packaging and delivery

Packaging Details

Plastic film cover & wooden box high cube export standard packing container for CICEL Stainless Steel Barrier Multi-Arc Ion PVD Vacuum Coating Machine

Port of dispatch

Guangdong

Selling Units

Single item

Single package size

80X25X25 cm

Single gross weight

10.000 KG

Packaging examples

Supply capacity

Supply Ability

10 sets per Month Stainless Steel Barrier Pvd Vacuum
